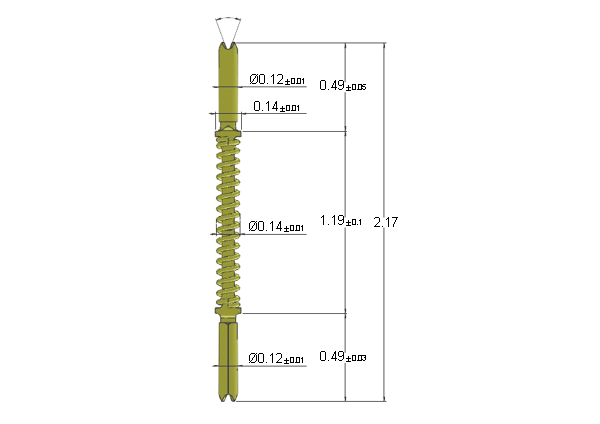

Probe pin

Probe pin

Stable signal transmission is secured by both contact structure sandwich.
Use forRadio Frequency and Low-profile

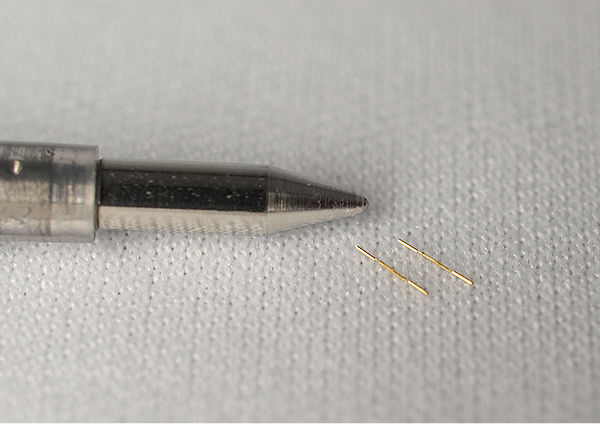

Probe pin

  • Shortest 1.25mm
  • Repeated life:100,000 or more
  • Inductance:0.38nH
  • Allowable current:2.0A

Also support large current capacity.

Sheet Contact

Silicone rubber Sheet contact

Embed the electrodes in the Silicone rubber sheet by laser processing.
The holes' position and diameter can be set arbitrarily、it is also possible to form electrodes with different pitches on one sheet.
Custom-made each time based on PKG.

Sepcification
Material Metallized Diamond powder Coated Au
Characteristic Structure resistant to damage by repeated contact of Device ball
Contact force 45±5g/pin@0.2mm
Recommended stroke 0.25mm
Life 100,000 times

Anisotropic Conductive Sheet

Anisotropic Conductive Sheet

Metallic particles are arranged in the vertical direction, realizing a very short conduction length.
According to the inspection pitch density adjustment is possible.
It is possible to cut shape suitable for PKG.

Example: Specification of LGA1mm pitch Sheet
Thickness 0.25mm
Use temperature -40℃~160℃
Durability 500,000 or more(Gold plating PAD)
Average resistance 20mΩ or less
Inductance 0.1nH or less
