RF circuit board

RF circuit board

RF circuit board

RF circuit board

According to customer requirements, we will choose suitable materials which is meet analog and digital high-frequency characteristics, and design the best high frequency circuit board, in order to provide customers with satisfactory products.

Specifications of High-speed digital PCB

Specifications of High-speed digital PCB

Specifications
CPU PEZY-SC Processor FCBGA 47.5x47.5mm 2,112pin
PEZY Core 1,024PE
CPU for control ARM926x2
Operating frequency 733MHz
power consumption 80Watt
PCI-ExpressGEN3 8lane×4 Bandwidth 32GB/sec
DDR4 2.4GHz 64bit 8ch Max capacity 16GB、Max bandwidth153.6GB/sec.
PCB FR-4 20ply IVH(1-10ply 、11-20ply ) thickness 2.846mm(tolerance:+0.15mm-0.1mm)

Analog High frequency signal PCB

Analog High frequency signal PCB

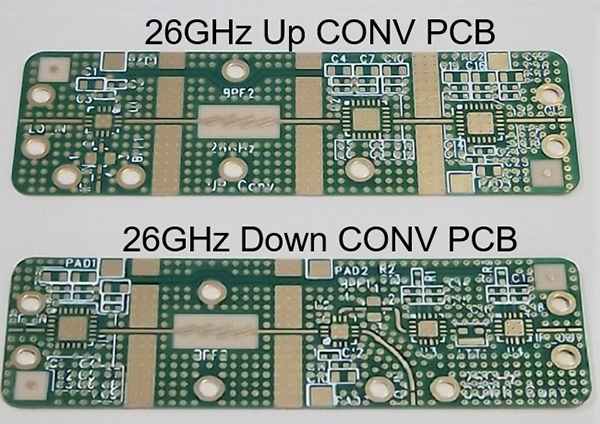

The 26GHz Up / Down converter PCB for 2x mixer.
About how this PCB works, when the 3.5GHz signal is input to the up-converter, it will be converted into a quasi-millimeter wave (26GHz band) for transmission and output.
The down converter receives the quasi-millimeter wave (26GHz band) and returns to the original 3.5GHz use.


For more information, please visit the following URL.

https://www.link-circuit.co.jp/
